Product Description
250X250X10 Square and Rectangular Steel Pipe Line:
The equipment adopts modular mold, more prebending and directly molding side craftwork, which has the characteristics of not tearing down the main shaft and the stand, changing roller quickly and low loading.
It reduces the cost of die roll and the time of changing rollers by 60%.
The four angles of the square and rectangular pipe have the same thickness and strength.
This equipment is suitable for small scale production with different specifications.
Product model number: 口250X250X10
Range of square pipe: 口80X80X3-口250X250X10
Wall thickness: 3-10mm
Steel strip material: δB≤580Mpa, δS≤350Mpa, Mild steel & low alloy steel
Welding speed: 6-15m/min
Main motor power: 500kw
High frequency equipments: 800kw
Equipment composition：

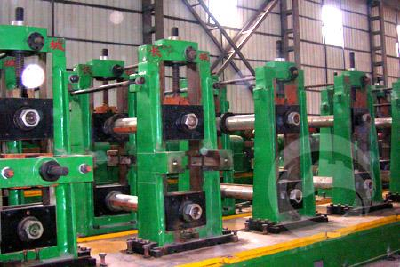

The 250X250X10 Square and Rectangular Pipe Welding Equipment consists of an uncoiling machine, Unbender unit, active Flattening machine, cutter & butt welder, Storing Loop, forming and sizing unit, computer flying saw, charge table, sack & bale machine, high frequency DC drag, product line electric appliance.
