Introduction:
The thick sheet cut to length line is a kind of thick coil cut to length system used to cut cold-rolled steel, coil plates, stainless steels, galvanized steel plate color, etc into length-gauged plates. Moreover, any specification can be cut via uncoil level and cut to length. Additionally, this line has the function of trimming.

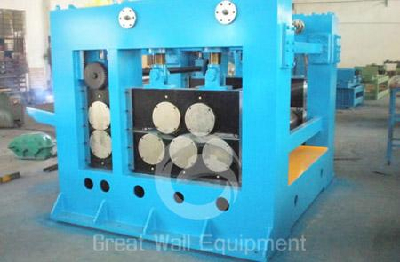

This thick sheet cut to length line comprised of hydraulic coil-loading car, hydraulic single-spindle uncoiler, hydraulic coil-head-feeding and coil-press device, coil-end straightener, double-roller pinch feeder, central aligner, main leveler, encoding table, shearing machine, roll table conveyor, piling-up racket, lifting table and collecting table, hole accumulator, tensioner, recoiler, coil-discharging car, hydraulic system, electric control system.

This metal coil decoiling, leveling and cut-to-length line is divided in to three kinds because of different strip thickness and strip width, including thin sheet, middle thick sheet and thick sheet. Among them, the thick sheet cut to length line: strip thickness: 3-14mm, 4-16mm or 6-20mm; strip width: 600-1600mm or 1000-2000mm or 1000-2500mm.

Application:
The sheet cut to length line apply to process cold-rolled steel, hot-rolled steel, carbon steel, stainless steel, galvanized steel, color steel plates and the various metal materials.

Specifications:
1. 3~14×1600mm cut to length line
Material of coils: carbon steel (Q195, Q235 etc.)
Strip thickness: 3-14mm
Strip width: 600-1600mm
Inner diameter of coils: Φ508mm-Φ760mm
Max.outer diameter of coils: Φ2000mm
Max.coil weight: 30000kg
Leveling roller: Φ190×1700mm
Material of leveling roller :40Cr, HRC55°-56°
Material of cutters: 6CrW2Si
Cutting speed: (0-30) m/min, adjustable
2. 4-16×2000mm cut to length line
Material of coils: stainless steel
Strip thickness: 4-16mm
Strip width: 1000-2000mm
Inner diameter of coils: Φ508mm-Φ760mm
Max.outer diameter of coils: Φ1100-Φ2000mm
Max.coil weight: 35000kg
Leveling roller: Φ210×1700mm
Material of leveling roller: 40Cr, HRC55°-56°
Material of cutter: SKD-II
Cutting speed: (0-25) m/min, adjustable
3. 6-20×2500mm cut to length line
Material of coils: HR, CR, carbon steel and etc.
Strip thickness: 6-20mm
Strip width: 1000-2500mm
Inner diameter of coils: Φ508mm-Φ760mm
Max.outer diameter of coils: Φ2000mm
Max.coil weight: 35000kg
Leveling roller: Φ210x1700mm
Material of leveling roller: 40Cr, HRC55°-56°
Material of cutter: SKD-II
Cutting speed: (0-30) m/min, adjustable
